Servidores de Tiempo SYNCFIRE 1000 NTP
Características del producto

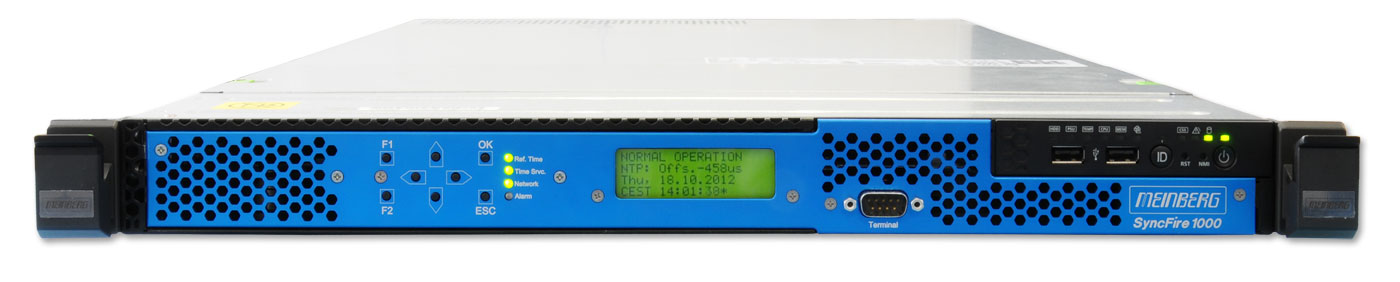

The all-new Meinberg SyncFire 1000 NTP Time Server appliance offers the flexibility and reliability of the Meinberg LANTIME M-Series Product Family in a new package that is optimized for Data Center deployments. Due to its new powerful CPU options, it can synchronize hundreds of thousands of NTP and SNTP clients.
The redundant, hot-pluggable power supplies and system fans ensure a 24/7 operation, 365 days a year with no or minimal downtime for repair in case of a hardware failure. The ability to add a second GPS receiver for a redundant reference time source plus the capability to form redundant network links by assigning multiple LAN interfaces to a high availability bonding group provide an unmatched level of reliability.
This makes the Meinberg SyncFire 1000 one of the world‘s strongest and most reliable NTP appliances on the market and the perfect fit for high performance NTP requirements like synchronization of Femtocell Access Points, VOD Set Top Boxes or large scale general purpose IT and Telecommunication networks.
The SyncFire 1000 is equipped with a TCXO oscillator. Time base upgrades up to OCXO-HQ are possible (look at oscillator options for details) as standard. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed). For applications with higher accuracy requirements there are several oscillator options available.
Synchronization of NTP and SNTP compatible clients
Web based status and configuration interface (Demo) and console based graphical configuration utility
Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
Antenna connected with up to 300m of standard coaxial cable RG58
Up to six independent RJ-45 ethernet interfaces 10/100/1000 MBi
Especificaciones técnicas
| Operating System | Linux with nano kernel (incl. PPSkit) |
| Type of receiver | 12 channel GPS C/A-code receiver |
| Type of antenna | Remote powered GPS antenna/converter unit, up to 300m distance to antenna with RG58 and up to 700m distance with RG213 cable |
| Display | LC-display, 4 x 20 characters |
| Control elements | Eight push buttons to set up basic network parameters and to change receiver settings |
| Status info | Four bicolor LEDs showing status of: |
| – reference time | |
| – time service | |
| – network | |
| – alarm | |
| Network Interface | Standard: 2 x 10/100/1000 MBit with RJ45 connector |
| Available Options: | |
| Additional network interface card with 4 x 10/100/1000 MBit – RJ45 jack | |
| Power supply | Standard: 2 x 100-240 VAC / 800W |
| redundant power supply | |
| Max. rated current 8 A | |
| Main power fuse 16 A | |
| Network protocols OSI Layer 4 (transport layer) | TCP, UDP |
| Network protocols OSI Layer 7 (application layer) | TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP |
| Internet Protocol (IP) | IP v4, IP v6 |
| Network Autoconfiguration Support | IPv4: Dynamic Host Configuration Protocol – DHCP (RFC 2131) |
| IPv6: Autoconfiguration Networking – AUTOCONF | |
| Network Time Protocol (NTP) | NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (no RFC) |
| SNTP v3 (RFC 1769), SNTP v4 (RFC 2030) | |
| MD5 Authentication and Autokey Key Management | |
| Time Protocol (TIME) | Time Protocol (RFC 868) |
| Daytime Protocol (DAYTIME) | Daytime Protocol (RFC 867) |
| IEC 61850 | Synchronization of IEC 61850 compliant devices by using SNTP |
| Hypertext Transfer Protocol (HTTP) | HTTP/HTTPS (RC 2616) |
| Secure Shell (SSH) | SSH v1.3, SSH v1.5, SSH v2 (OpenSSH) |
| Telnet | Telnet (RFC 854-RFC 861) |
| Simple Network Management Protocol (SNMP) | SNMPv1 (RFC 1157), SNMPv2c (RFC 1901-1908), SNMP v3 (RFC 3411-3418) |
| Form Factor | 19 Inch Server Rack 1HE/84TE |
| 431 mm x 718 mm x 43 mm (W x D x H) | |
| Ambient temperature | 10°C … 35°C |
| Humidity | 10% … 85% |
| Scope of supply | Included in delivery is our GPS antenna incl. converter unit, 20m GPS antenna cable (RG58) and product documentation. |
| Technical Support | Meinberg offers free lifetime technical support via telephone or e-mail. |
| Warranty | Three-Year Warranty |
| Firmware Updates | Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection. |
| Software updates are provided free of charge, for the lifetime of your Meinberg product. | |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Additional Information | Additional information about the Meinberg LANTIME family of NTP time servers and other LANTIME models can be found on the LANTIME NTP Time Server Family Page . |
| Note: The SyncFire 1000 cannot operate as a standard server. Meinberg’s SyncFire 1000 was developed to operate as a powerful NTP time server and does not provide the needed operation system to be deployed as a standard server. |
