Antenas DCF77
Características del producto

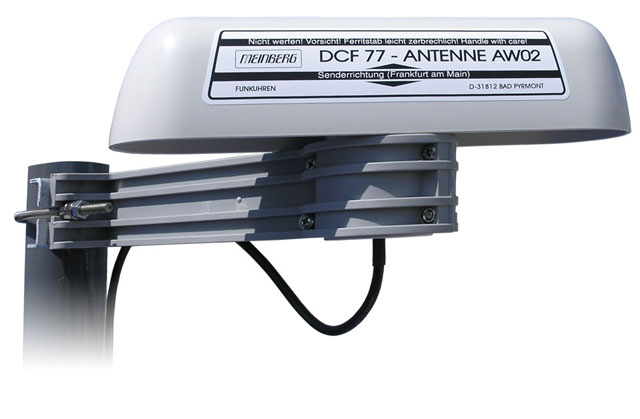

The AW02 is a weatherproof and temperature resistant DCF77 active antenna for outdoor use. It includes a ferrite rod with impregnated winding and RF amplifier circuit in a plastic housing, with power provided by the receiver via the antenna cable.
The AW02 supports antenna-receiver distances of up to 300m (1000ft) with standard RG58 cable, and longer cable runs are possible using an amplifier or the fiber optic DOAL antenna system.
The AW02-60 is a weatherproof and temperature resistant 60 kHz antenna for outdoor use. It includes a ferrite rod with impregnated winding and RF amplifier circuit in a plastic housing, with power provided by the receiver via the antenna cable.
The AW02-60 antenna can be placed up to 300m (1000?) from the receiver using standard RG58 cable. Greater distances are possible using an antenna amplifier, low loss RG213 cable or the fiber optic DOAL antenna system.
Especificaciones técnicas
| MODEL | AW02 |
| Control elements | For orientation the antenna is rotatable (360 deg). When the antenna cable is more than 300m lenght an antenna amplifier is needed. |
| Physical dimensions | 245mm x 106mm x 68mm (width x height x depth) |
| Electrical connectors | Coaxial cable RG58 for indoor/outdoor mounting ( type-N connector) The cable is available in all lenghts and with the required connectors. |
| Antenna connector | Antenna with type-N female connector (RG58 coaxial cable) |
| Form Factor | Unbreakable plastic case, specially for outdoor installation (IP56) The rubber sealing protects the electronic, the ferrite rod and the winding against external influence. |
| Ambient temperature | -25°C … +65°C |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| MODEL | AW02-60 |
| Control elements | For orientation the antenna is rotatable (360 deg). When the antenna cable is more than 300m lenght an antenna amplifier is needed. |
| Physical dimensions | 245mm x 106mm x 68mm (width x height x depth) |
| Electrical connectors | Antenna with type-N female connector (RG58 coaxial cable) |
| Antenna connector | Coaxial cabel RG58 for indoor/outdoor mounting (type-N connector) |
| The cable is available in all lenghts and with the required connectors. | |
| Form Factor | Unbreakable plastic case, specially for outdoor installation (IP56) The rubber sealing protects the electronic, the ferrite rod and the winding against external influence. |
| Ambient temperature | -25°C … +65°C |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
