Características del producto

NTP Time Server with Reference Clock for Industrial Applications

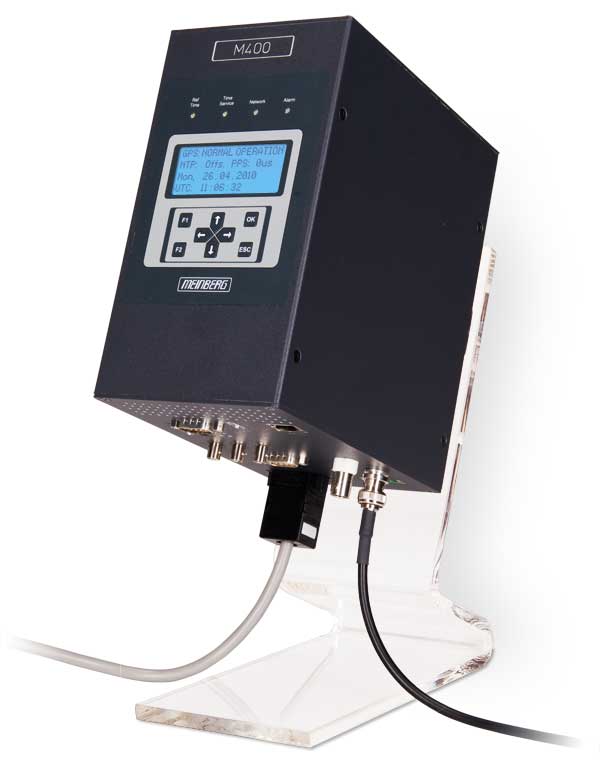

The LANTIME M400 Time Server offers an unparalleled flexibility and versatility and provides accurate time to your network in a compact and full-featured DIN railmount package for industrial applications such as power generation, transmission and distribution (substation automation), process control and industrial automation systems. The M400 includes an LC-Display and keypad and an extremely broad range of available options.

The LANTIME M400 is available with an integral receiver as well as an IRIG timecode reader and can be customized with a lot of different options to deliver exactly the feature set that is required for a certain application/environment.

Ultra compact Form Factor
The ultra compact form factor enables this product to become the ideal time and frequency source in installations where every millimeter counts. It is available in two different sizes: the standard M400 chassis (105x189x146mm) with one option slot and the XL version (105x189x166mm) that offers an additional slot to provide even more outputs and interfaces. With up to 5 (M400) and up to 9 (nine!) Ethernet ports, this NTP appliance offers the world’s highest port densitiy.

Simple System Configuration
As with most LANTIME M-Series models, a large LC-Display showing the state of the internal GPS receiver and the NTP/PTP subsystem is combined with three bicolor LEDs (green/red) that indicate the status of the three main components: Reference Time (e.g. GPS or GLONASS), Time Synchronization Service (NTP/PTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines.

Oscillator Options
The LANTIME M400 GPS is equipped with a high precision oscillator “”TCXO”” (look at oscillator options for details). The oscillator determines the holdover characteristics (e.g. when a reference source signal like GPS is disturbed or jammed). For applications with higher stability/holdover requirements there are several oscillator options available (up to “”OCXO HQ””).

Modular System Architecture
Because of its modular system architecture it is possible to equip a LANTIME M400 time server with a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available as well as power supplies for additional input voltage ranges.

In addition to the standard electrical interfaces a lot of output signals can be delivered on optical ports, too.

Available Reference Sources:
GPS: Satellite receiver for the Global Positioning System
GLN: GLONASS Satellite receiver
MGR: GPS Satellite receiver for mobile applications
PZF: DCF77 correlation receiver for middle europe
MSF: Long wave receiver for Great Britain
WWVB: Long wave receiver for the US time signal
TCR: Time code receiver for IRIG A/B, AFNOR or IEEE1344 codes
MRS (GPS, PPS, 10MHz, PTP, NTP): Multi Reference Source – several reference sources, adjustable following priority of signal
Synchronization of NTP and SNTP compatible clients
Web based status and configuration interface (Demo) and console based graphical configuration utility
Supported net protocols: IPv4, IPv6, NTP, (S)NTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, TELNET
Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of configuration and log files
Antenna connected with up to 300m of standard coaxial cable RG58
Our LANTIME time server can be provided with a large number of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs are only a few of the many expansion options for your NTP server.
Up to 9 network interfaces

Especificaciones técnicas

Display LC-display, 4 x 16 characters
Control elements Eight push buttons to set up basic network parameters and to change receiver settings
Status info Four bicolor LEDs showing status of:
– reference time
– time service
– network
– alarm
Frequency outputs 10 MHz via female BNC connector, TTL into 50 Ohm
Accuracy depends on oscillator (standard: TCXO), look at oscillator options
Pulse outputs Pulse Per Second (PPS), TTL level, pulse width: 200ms
Accuracy of pulse outputs Depends on oscillator option:
< ±250ns (TCXO, OCXO LQ)
< ±100ns (OCXO MQ, OCXO HQ, OCXO DHQ)
Interface Single serial RS232 interface (no serial interface in case of an internal time code receiver).
Data format of interfaces Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200 Baud
Data formats: 7N2, 7E1, 7E2, 7O1, 8E1, 8N1, 8O1
Time strings: Meinberg Standard-Telegram , SAT, Uni Erlangen (NTP), SPA, RACAL, Sysplex, NMEA0183 (RMC, GGA, ZDA), Meinberg GPS, COMPUTIME, ION oder Capture-Telegramm
Physical dimensions Standard: 105 x 189 x 146 mm
XL-Version: 105 x 189 x 166 mm
Alarm output Synchronous state of the module, relay output (changeover contact)
Network Interface 1 x 10/100 MBit with RJ45 (up to 8 additional LAN interfaces possible)
Power supply Standard:
100-240 VDC / 100-240 VAC
Option: 19-72 VDC
Power consumption 30W
Universal Serial Bus (USB) Ports 1x USB Port:
– install firmware upgrades
– backup and restore configuration files
– copy security keys
– lock/unlock front keys
Supported Time String Formats Meinberg Standard Timestring, Uni Erlangen Timestring, SYSPLEX Timer, NMEA, Computime, ABB-SPA, SAT, Arbiter
Single-Board-Computer i386 compatible 500Mhz CPU, 128 MB RAM
Operating System of the SBC Linux with nano kernel (incl. PPSkit)
Network protocols OSI Layer 4 (transport layer) TCP, UDP
Network protocols OSI Layer 7 (application layer) TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP
Internet Protocol (IP) IP v4, IP v6
Network Autoconfiguration Support IPv4: Dynamic Host Configuration Protocol – DHCP (RFC 2131)
IPv6: Autoconfiguration Networking – AUTOCONF
Network Time Protocol (NTP) NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (no RFC)
SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)
MD5 Authentication and Autokey Key Management
Time Protocol (TIME) Time Protocol (RFC 868)
Daytime Protocol (DAYTIME) Daytime Protocol (RFC 867)
IEC 61850 Synchronization of IEC 61850 compliant devices by using SNTP
Hypertext Transfer Protocol (HTTP) HTTP/HTTPS (RC 2616)
Secure Shell (SSH) SSH v1.3, SSH v1.5, SSH v2 (OpenSSH)
Telnet Telnet (RFC 854-RFC 861)
Simple Network Management Protocol (SNMP) SNMPv1 (RFC 1157), SNMPv2c (RFC 1901-1908), SNMP v3 (RFC 3411-3418)
Form Factor Fischer aluminium housing for DIN mounting rail
Ambient temperature 0 … 50°C / 32 … 122°F
Humidity Max. 85%
Scope of supply Included in delivery is a MEINBERG outdoor antenna incl. mounting kit, pre-assembled antenna cable (except MRS, TCR and RDT models) and product documentation on USB storage.
Technical Support Meinberg offers free lifetime technical support via telephone or e-mail.
Warranty Three-Year Warranty
Firmware Updates Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection.
Software updates are provided free of charge, for the lifetime of your Meinberg product.
RoHS-Status of the product This product is fully RoHS compliant
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.
