Módulos USB
Características del producto
Radio Clocks and Time Code Receiver for the Universal Serial Bus (USB)
A perfect alternative to synchronize computer systems when a PCI slot or serial port is not available. Meinberg USB radio clocks contain an internal antenna and are powered by the Universal Serial Bus, so no external power supply is required.
Key Features
– Powered by USB (no extra power supply required)
– Receiver status LEDs
– Buffered hardware clock
– Internal Antenna and External Antenna Input (Radio Clock models)
– Time Code signal input (TCR model)
– Plastic Case
– Two-year Warranty
Models:

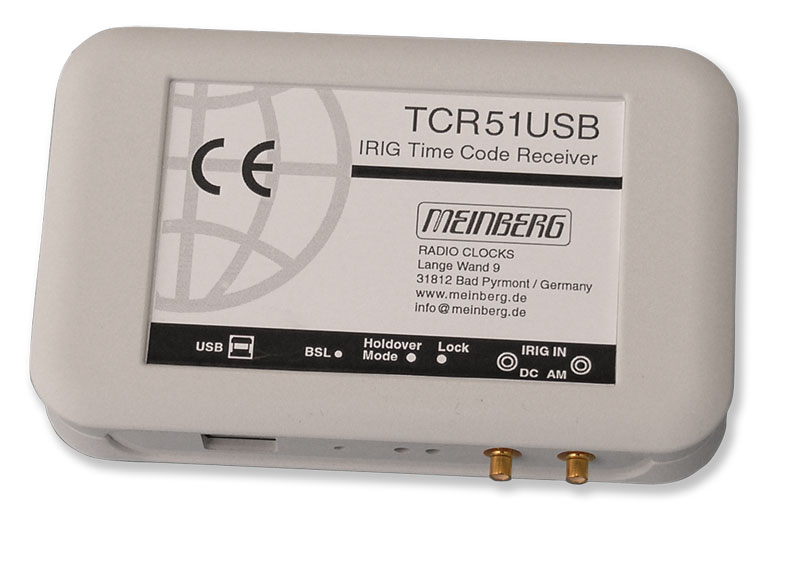

– TCR51USB
IRIG Time Code Reader for the Universal Serial Bus (USB)
The TCR51USB is a Timecode Reader with USB interface in a compact plastic housing. This device is a perfect alternative for synchronizing computer systems or checking the output of an IRIG generator when no PCI slot or serial port is available. It supports both IRIG AM and DCLS signal types and decodes a number of different time codes.
– DCF600USB
DCF77 Radio Clock for the Universal Serial Bus (USB)
The DCF600USB is a DCF77 Radio Clock for USB in compact plastic housing with an integrated DCF77 antenna, an (optional) external antenna can be connected to compensate degraded reception quality. This device is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time synchronization.
– MSF600USB
MSF Radio Clock for the Universal Serial Bus (USB)
The MSF600USB is a MSF Radio Clock for USB in a compact plastic housing with an integrated MSF antenna, an (optional) external antenna can be connected to compensate degraded reception quality. This device is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time synchronization.
– WVB600USB
WWVB Radio Clock for the Universal Serial Bus (USB)
The WVB600USB is a Radio Clock that receives the WWVB long wave time signal and synchronizes a PC or laptop using a USB connection. The compact plastic housing includes an integrated antenna,an external antenna can be connected as an option to improve reception quality in noisy environments.
This device is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time synchronization.
Especificaciones técnicas
| MODEL | TCR51USB |
| Type of receiver | Integrated IRIG time code reader, supports modulated (AM) and unmodulated (DCLS) IRIG signals |
| Synchronization time | Two to three minutes after connecting an IRIG source |
| Physical dimensions | 73mm x 117mm x 24mm (L x W x H) |
| Antenna connector | SMB-Subminiature-coaxial-connector |
| Current consumption | 40mA |
| Ambient temperature | 0 … 50°C / 32 … 122°F |
| Humidity | Max. 85% |
| Scope of supply | Timecode Reader, 3 m USB cable |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| MODEL | DCF600USB |
| Type of receiver | Narrowband straight receiver with automatic gain control, Bandwidth: approx. 40Hz |
| Accuracy | < +/-5 ms to UTC |
| Synchronization time | 2-3 minutes after correct DCF77 signal reception |
| Physical dimensions | 73mm x 117mm x 24mm (L x W x H) |
| Antenna connector | SMB-Subminiature-coaxial-connector |
| Current consumption | 90mA |
| Ambient temperature | 0 … 50°C / 32 … 122°F |
| Humidity | Max. 85% |
| Scope of supply | Radio Clock, 3 m USB cable |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| MODEL | MSF600USB |
| Type of receiver | Integrated MSF long wave radio receiver 60kHz (MSF website) |
| Synchronization time | 2-3 minutes after signal reception has been established |
| Physical dimensions | 73mm x 117mm x 24mm (L x W x H) |
| Antenna connector | SMB-Subminiature-coaxial-connector |
| Current consumption | 90mA |
| Ambient temperature | 0 … 50°C / 32 … 122°F |
| Humidity | Max. 85% |
| Scope of supply | Radio Clock, 3 m USB cable |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| MODEL | WVB600USB |
| Type of receiver | Integrated WWVB long wave radio receiver 60kHz (WWVB website) |
| Accuracy | < +/-5 ms to UTC |
| Synchronization time | 2-3 minutes after signal reception has been established |
| Physical dimensions | 73mm x 117mm x 24mm (L x W x H) |
| Antenna connector | SMB-Subminiature-coaxial-connector |
| Current consumption | 90mA |
| Ambient temperature | 0 … 50°C / 32 … 122°F |
| Humidity | Max. 85% |
| Scope of supply | Radio Clock, 3 m USB cable |
| RoHS-Status of the product | This product is fully RoHS compliant |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
